Solar Harness

The solar harnesses from Suntree have excellent weather resistance and can withstand high and low temperatures, UV radiation, ozone, humidity and other natural factors.

Solar Harness
Solar Harness Solar Harness
/SH-l Junction DC 1500V IJunction

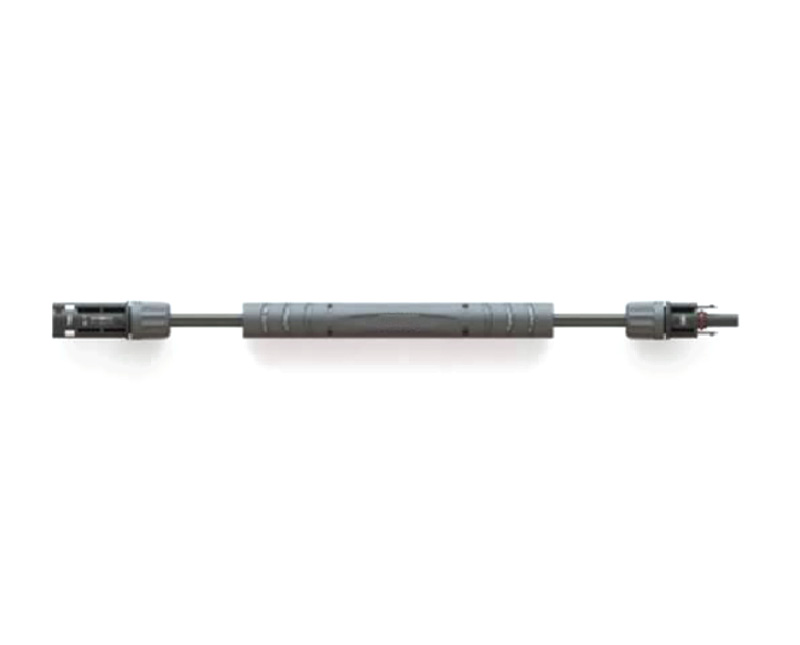

SH-l Junction

SUNTREE Power The SH-l Junction use high quality materials that guarantee long-term reliability.Lower contact resistance and higher current transfer capability ensure high product effiiency.They were qualified in TUV&ETL labs with solar professional standards.The SH-l Junction has passed both IEC1500V and UL1500V certifications. The waterproof rating is IP 68. It has UV resistant function.

Cable Spec:4 mm² ~ 16mm²

Fuse:1~50A, 1~32A, 0A

/SH6 P Series Crystal Harness
SH6 P Series Crystal Harness

SUNTREE Power SH6 P Series Branch Harness use high quality materials that guarantee long-term reliability. SH6 P Series Branch Harness have lP68 water-proof rating and can be used in a wide operating temperature range from -40℃ to 90℃.

Rated Voltage:IEC 1500V \ UL1500V

Junction Rated Current:Max 70A

/SA6 B Mini Fuse Unit

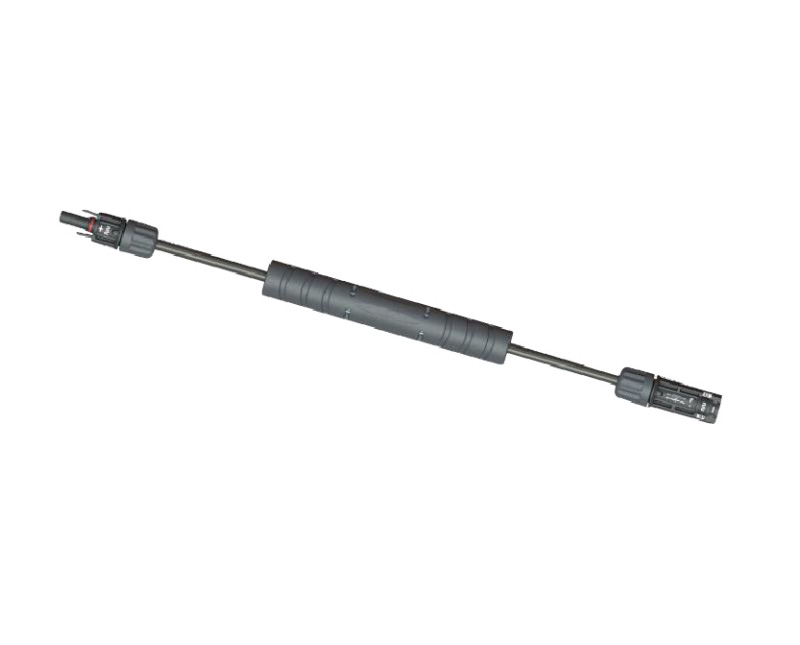

SA6 B Mini Fuse Unit

SA6 B Mini Fuse Series use high quality weather resistance materials to seal the fuse units in line. SA6 B Mini Series could match 2.5 mm² to 6 mm² cables, it could be wildly used in different applications.

Rated Voltage:DC 1500V

Rated Current:Max 32A

/SH6 Galaxy Series Integrated Confluence
SH6 Galaxy Series Integrated Confluence

SH6 Galaxy Series integrated confluence products, using high-quality welding process to ensure the reliability of electrical connections. At the same time, the fire-retardant and weather-resistant adhesive sealing process is adopted to ensure the 30-year service life requirement of the product in the outdoor exposed environmenit.The products adopts a number of patented technologies, including but not limited to copper-aluminum transition composite process parts, wire welding process, cable fastening process and adhesive sealing process.

Rated voltage:DC 1500V

lp waterproof:IP68 (1m,1h)

ADVANTAGES
01

IP 68

IP 68
02

-40℃~85℃

02
03

UL94-V0

03
04

UV Resistance

04
WHAT DO YOU WANT TO ASK?
FREQUENTLY ASK QUESTION
Does the product have a fail-safe design?

Our solar wiring harnesses are equipped with perfect fault protection design, such as over-current protection, over-voltage protection, under-voltage protection and other functions.

Is your solar wiring harness compatible with our existing solar equipment?
Is the mechanical strength of the wire harness sufficient?
What are the advantages in terms of high conductivity and low resistance?
