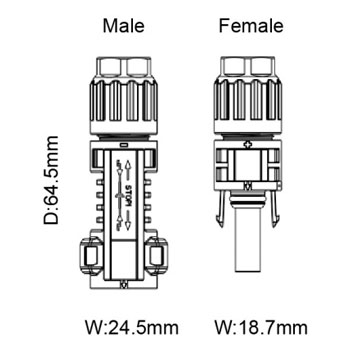

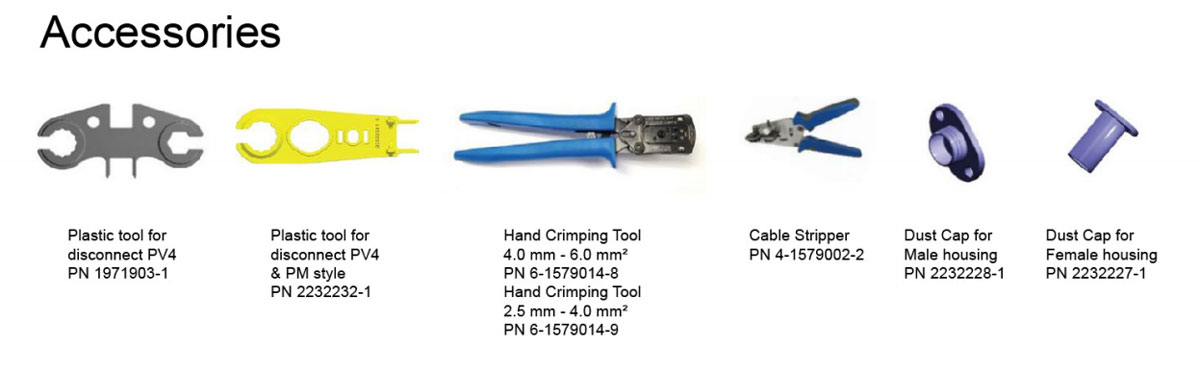

Solarlok SPV4-S Connector 1500V DC

Harnessing solar energy requires a reliable connection between your solar panels and battery to ensure efficient charging and system longevity. While the process involves several components, one often overlooked hero of the system is the solar connector—a small but essential part that ensures efficiency, safety, and durability.

Required Components

Solar Panel,Deep-Cycle Battery,Charge Controller,Inverter,Solar-Grade Cables and Solar Connector

Wire the Solar Panel to the Charge Controller

Trim and strip the solar panel’s wires to expose the conductors.Attach solar connectors to the panel’s positive (+) and negative (-) leads.

Connect the Charge Controller to the Battery

Link the charge controller’s terminals to the battery using appropriately sized wires.Always connect the battery first to avoid damaging the controller.

Secure and Test the System

Use a multimeter to verify voltage from the panel to the controller.Check that the charge controller recognizes the battery and begins charging.

The Hidden Benefits of Solar Connectors

Safety: Their insulated, polarized design prevents accidental short circuits. You can’t plug them in backward, reducing installation errors.

Scalability: Need to add more panels? Solar connectors allow easy “daisy-chaining” with extension cables or branch connectors.

Durability: Rated for extreme temperatures and UV resistance, they outlast cheap alternatives, saving you from frequent replacements.

A basic solar battery charging setup simply connects the solar panel's positive wire to the battery's positive terminal and the panel's negative wire to the battery's negative terminal.By following these steps, you ensure a safe and efficient solar charging system. Always refer to manufacturer guidelines for specific components.

In today's energy transformation, power transmission is crucial. Solar cables are a new force in the field of new energy. The following will reveal the factors that affect the service life of solar cables.

1. Environmental Conditions

temperature: Solar cables are often exposed to outdoor environments and face large temperature changes. High temperatures will accelerate the aging of cable insulation materials, making them hard and brittle, reducing insulation performance and making them prone to cracks and breakage. Too low temperatures will make the cables stiff and less flexible, making them more likely to break when subjected to external forces, thus affecting the service life of the cables.

Ultraviolet radiation: Long-term ultraviolet radiation will cause the outer sheath material of the cable to age and crack, reduce its mechanical strength and weather resistance, lead to a decrease in the protective performance of the cable, make it susceptible to erosion by external factors, and shorten the service life of the cable.

Humidity and moisture: High humidity or direct contact with moisture can make the cable damp, affecting its insulation performance. Moisture can also cause the metal conductor inside the cable to rust and corrode, increasing resistance and reducing conductivity. It can also weaken the mechanical strength of the cable, making it more susceptible to damage.

2. Material factors

Conductor material: The conductor of solar cables is usually made of copper or aluminum. High-quality copper or tinned copper conductors are corrosion-resistant and ensure better conductivity. If the conductor material is of poor quality, contains impurities or defects, it will also reduce the service life of the cable.

Insulation material: The performance of the insulation material is directly related to the insulation effect and service life of the cable. If the insulation material's heat resistance, moisture resistance, aging resistance and other properties are insufficient, problems such as insulation breakdown and leakage are likely to occur during long-term use, thus affecting the normal operation and service life of the cable.

Sheath material: The sheath material mainly protects the internal structure of the cable and needs to have good mechanical strength, wear resistance, weather resistance and corrosion resistance. If the sheath material is of poor quality, it is easy to be damaged or cracked during use, exposing the insulation layer and conductor inside the cable to the external environment and being eroded and damaged by various factors.

3. Electrical Load

Overloading: Exceeding the cable's current-carrying capacity can cause overheating and insulation damage.

Voltage Fluctuations: High voltage spikes can degrade insulation over time.

4. Laying method

Bending radius: During the laying process, if the bending radius of the cable is too small, the conductor and insulation layer inside the cable will be excessively squeezed and stretched, causing its structure to deform, thereby affecting the electrical and mechanical properties of the cable and reducing the service life of the cable.

Laying length and tension: Too long laying length will increase the resistance of the cable, resulting in increased line loss, and will also cause the cable to be subjected to greater tension. Excessive tension will cause tensile stress on the insulation layer and sheath of the cable, making it easy to break and fracture, thus shortening the service life of the cable.

5. Maintenance of solar cables

Regular inspections: Carry out a comprehensive inspection at least once a month to check whether the cable surface is damaged, whether the insulation layer is intact, whether the joints are firm, etc., promptly detect signs of aging such as cracks and peeling, and take measures to maintain and repair them.

Check the connection status: Make sure the solar cable is firmly connected, without signs of looseness, oxidation or discoloration due to overheating. For the connection parts, tools should be used to tighten them regularly, and check whether cleaning or anti-corrosion treatment is needed.

Clean the cable surface: Clean the surface of the cable insulation layer regularly to remove attached oil, dust, etc. to maintain good insulation performance, but use professional cleaning agents and tools to avoid damaging the insulation layer.

Monitor cable load: Regularly measure and monitor cable load to control the cable from being overloaded and keep it within the specified allowable continuous current carrying capacity to prevent premature aging of the cable insulation layer.

Record and archive: Each inspection should be recorded in detail to establish a solar cable status file to provide a basis for subsequent tracking and maintenance.

The service life of solar cables is affected by environmental conditions, material factors, electrical load, laying method and regular maintenance.Addressing these factors will increase the service life of solar cables.

In today's era of rapid technological advancement, the safe fixing of outdoor cables is crucial to the stable operation of various electrical systems. Whether it is common power transmission or the emerging field of solar power generation, the correct method of selecting fixed cables cannot be ignored. This article aims to provide you with a detailed introduction to the practical methods of fixing outdoor cables on metal walls, and especially discusses the key points of fixing solar cables.

I. Introduction
In the realm of outdoor electrical setups, ensuring the safety and stability of cable installations is crucial. This article delves into the methods of fastening cables to metal walls, catering not only to general outdoor cables but also addressing the unique aspects of solar cables.

II. Common Methods and Materials for Securing Outdoor Cables to Metal Walls
A. Cable Clips
Cable clips present a popular and uncomplicated solution. They are available in diverse sizes and materials like plastic and metal. Plastic ones are lightweight and simple to install, either by screws or adhesive. Metal clips offer enhanced durability and strength, suitable for heavier cables or harsher outdoor conditions.
B. Cable Ties
Cable ties are another frequently used option. These flexible straps can encircle the cable and attach to a hook or screw on the wall. With various lengths and tensile strengths, you can pick the right one according to the cable's diameter and weight. They are also handy for bundling multiple cables before securing them, creating a tidy appearance.
C. Conduit and Mounting Brackets
Utilizing conduit to enclose the cables and then affixing it to the metal wall with mounting brackets is a more sophisticated yet highly effective approach. Conduit shields the cables from physical harm, moisture, and other environmental elements. The mounting brackets can be screwed or bolted onto the wall, and the conduit is secured within. This method is particularly apt for long cable runs or areas with significant wear and tear.

III. Transition to Solar Cables
Now that we have explored the general cable securing methods, let's focus on solar cables. What distinguishes solar cables from regular ones, and how does this affect their attachment to metal walls?
Solar cables are engineered to carry electricity from solar panels and endure prolonged sunlight exposure and harsh environments. A key concern in securing them is UV resistance. So, what materials should we opt for to safeguard the cable's integrity and its connection to the wall?
For solar cable installations, it's advisable to use UV-resistant cable clips and ties made from materials that can withstand the sun's rays without degrading. Another significant factor is cable flexibility. Given that solar panels might shift due to wind or temperature changes, how can we prevent cable damage from excessive bending or stretching?
When fastening solar wire/cables, it's essential to leave some slack to accommodate movement. This can be done with longer cable ties or clips that permit slight movement without stressing the cable. Also, routing the cable to minimize sharp bends and kinks is vital.

IV. Conclusion
In summary, whether dealing with standard outdoor cables or solar cables, choosing the appropriate securing techniques and materials for metal wall installations is critical. By accounting for the specific needs of each cable type and the environmental factors, you can ensure a dependable and durable setup. This safeguards the cables and promotes the overall efficiency and safety of the electrical or solar power system.
Remember, proper cable management is fundamental to a successful outdoor installation, and careful selection of securing methods will yield long-term benefits.
